UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

Min.Order/FOB Price Get Latest Price>

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal:amily@sdxxhg.com

Port: Qingdao

Production Capacity: 6000 Ton/Tons per Year

Shandong Ningjin Xinxing Chemical Co., Ltd.

Member Since:2020Dezhou,Shandong

Basic Info

Place of Origin: Shandong, China (Mainland)

Brand Name: XINXING

Model Number: UHMWPE square anti slip pads leveling pads rv, 4.5-9 million

Material: PE

Thickness: 40mm

Size: 500*500mm

Density: 0.93-0.96 g/cm3

Hardness (Shore D): 68

Tensile strength at break: 34 Mpa

Notched izod impact strength: 0.66 J/m

Abrasion wear: 18.8

Melting Temperature: 135.62 ℃

Tensile strength at yield: 20.2 N/mm2

Product Description

UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

UHMWPE square anti slip pads grue pied plaque de support leveling pads rv stabiliser/outrigger foot pads and locking stabiliser pad stowage boxes ideal for lorry loader cranes, mobile cranes, access platforms, plant and equipment, recovery vehicles, skips. Xinxing's UHMWPE square anti slip pads grue pied plaque de support leveling pads rv stabiliser/outrigger pads are produced from recycled high molecular weight polyethylene produced to various DIN standards. This material is made only from new production remainders, and when reprocessed has the same properties as material produced from new raw material.

Details of UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

Material	virgin UHMWPE (UHMW polyethylene)
Shape	round or square
Service	Logo by CNC machines. Anti-slip texture
Color	black/white/yellow/blue/red/orange or as request
Application	Fire trucks Utility trucks Tree trimmers Concrete pumps Cranes Any type of aerial equipment self erecting tower crane rental companies, knuckle boom crane installers, emergency services, vehicle recovery, facilities management, telecommunications and mobile crushing equipment manufacturers.

Size mm Length	Width	Thickness
400	400	20-200
500	500	20-200
600	600	20-200
700	700	20-200
800	800	20-200
900	900	20-200
1000	1000	20-200
1200	1200	20-200
1500	1500	20-200
Any size will be made as request.Any size is availible.

Function of UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

1.offer incredible strength;

2.offer durability for supporting heavier load.

3.Outrigger Pads stand up to harsh weather and extreme environments to protect you and your equipment from costly accidents.

Features of UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

Xinxing UHMWPE square anti slip pads grue pied plaque de support leveling pads rv are extremely reliable and offer excellent support…they’re built to last!
Resistant to water, oil and chemicals. There’s no splintering or corrosiveness. These tough and durable UHMWPE square anti slip pads grue pied plaque de support leveling pads rv can withstand extreme vertical pressure and will adapt to the contours of uneven terrain – but will spring back to its original shape after use!
Light and easy to handle, they can be carried, positioned and stored with minimal effort. Our UHMWPE square anti slip pads grue pied plaque de support leveling pads rv are available in a range of sizes, both square and circular and come with the option to personalise.

Advantage of UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

1.Lightweight, 1/7th The Weight Of Steel

2.Withstands Loads Up To 3000 psi
3.Retains Its Physical Properties To -80°c
4.Will Not Corrode, Rot, Or Rust
5.High Impact & Wear Resistance
6.Lighter and longer lasting than plywood or steel

Can be made as customerized:such as anti-slip texture

Production proccess of UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

1	making UHMWPE
2	clean the sheets
3	cutting to size
4	do CNC process and drill handle holes
5	install the handrail
6	packed into pallets

Size mm	load capacity tons	Size mm	load capacity tons
30030030	5	50050060	30
60060040	15	80080080	80
1000100060	80	1200120080	150
15001500100	160	20002000100	180

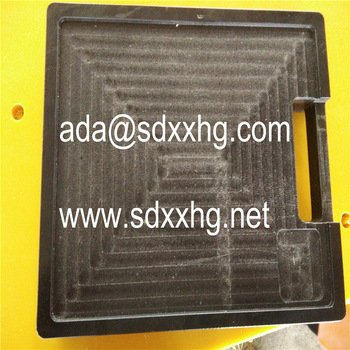

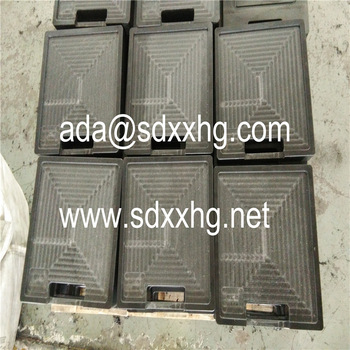

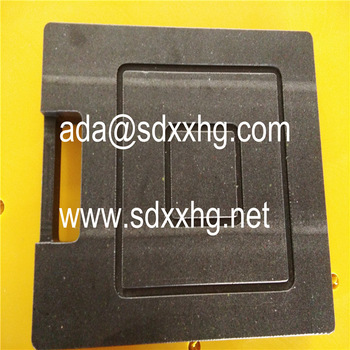

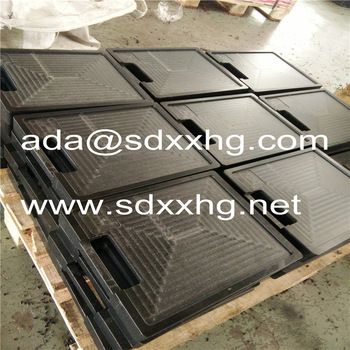

Detailed Images

UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

UHMWPE square anti slip pads grue pied plaque de support leveling pads rv

HDPE ground mats

used in 0-20 tons truck.for beach,landscape,construction,temperary road access.

UHMWPE ground protective mats

to protect the big crane not sunk into the mud,load capacity is 0-180 tons.Used in costruction,oil drilling...

Packing & Delivery

Shipping

pallets ,wooden case or as request

about 15-30 days

Air transportation

EXPRESS,DHL..UPS..
