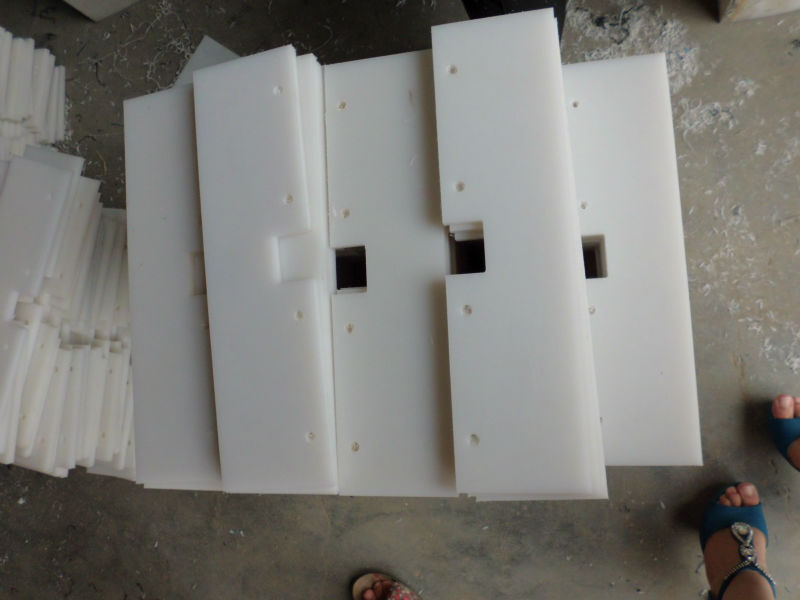

machined PE part, CNC machined conveyor part, conveyor PE drag flight, drag flight
| ≥500Kilograms | US $3.00-$9.00 |
Basic Info
Product Description
Specifications
conveyor PE drag flight, drag flight1.certification:ISO9001 2008
2.material: 100% virgin material
3.molecular: 9 million
machined PE part, CNC machined conveyor part, conveyor PE drag flight, drag flight
Why Choose Us
l More than 15 years' professional manufacturing experience with own factory.
l Virgin 100% material produced, high quality with good surface and color make ensured
l GB/T 19001-2008 ; ISO 9001:2008 certification.
l Competitive price, In stock, Fast delivery, and Excellent service.
l OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
The properties of UHMW-PE:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- |
≤0.16 |
Kinetic Friction Coefficient | -- |
≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Our UHMW-PE parts Characters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.
5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
Our UHMW-PE parts standard sizes:
1.Thickness: 6 - 300mm
2. Width: max 2000mm
3. Normal standard size:
Length(mm) | Width(mm) | Thickness(mm) |
2000 | 1000 | 6-300 |
3000 | 1500 | 6-300 |
4700 | 1200 | 6-300 |
5000 | 1300 | 6-300 |
4500 | 2000 | 6-300 |
3050 | 1220 | 6-100 |
Any small size need us to cut , we can satisfy your special need .
Packaging : pallet packing or as client need.
XINXING can provide various UHMWPE & HDPE products with the good quality at reasonable price according to your requirement.
Any questions, please feel free to contact us.
Many thanks for you visit us !
