UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

Min.Order/FOB Price Get Latest Price>

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal:amily@sdxxhg.com

Port: Tianjin,Qingdao

Production Capacity: 6000 Ton/Tons per Year

Shandong Ningjin Xinxing Chemical Co., Ltd.

Member Since:2020Dezhou,Shandong

Basic Info

Place of Origin: Shandong, China (Mainland)

Brand Name: XINXING

Model Number: UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers, 4.5-9 million

Material: PE

Thickness: 10-260mm

Size: 300*100mm

Density: 0.93-0.96 g/cm3

Hardness (Shore D): 68

Tensile strength at break: 34 Mpa

Notched izod impact strength: 0.66 J/m

Abrasion wear: 18.8

Melting Temperature: 135.62 ℃

Tensile strength at yield: 20.2 N/mm2

Product Description

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

UHMW is an ultrahigh molecular Weight Polyethylene with a molecular weight between 5 and 9 million, making it by far one of the polymer materials with the highest molecular density.

Fight friction and reduce costs with UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers.

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers are a tough, wear resistant plastic that combines an incredibly low coefficient of friction with outstanding impact strength. These self-lubricating UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers have excellent chemical resistance and a broad temperature range making them the perfect choice for engineers in a variety of industries such as conveyor and bulk material handling.

Material	virgin UHMWPE (UHMW polyethylene)
Service	any design can be made as request
Color	black/white/yellow/blue/red/orange or as request
Application	coal, cement, lumber, paper, steel, grain, canning， mining and manufacturing. in the industry for guiding belts, chain and cables designed to fit most bulk material handling chains Chair and belt guides Wear strips Corner tracks Spiral Conveyors guide rails Other construction parts and components Power transmission and conveying industries or components Conveying, assembly and material handling industries Port construction and offshore platforms Parcel chutes Track and guide rollers Sliding and drive components in the food industry Many components in the paper industry, such as; forming boards, foils and low vacuum foils, deflector strips and suction blades, suction box covers, sealing strips Also used in the filter industry Deflector strips and suction blades Sealing strips Guide rails and neck guides in filling and packaging industries Demanding applications in the paper industry Tivar H.O.T. Applications Sliding and drive components in the food and conveying industry Bakeries Food processing and packaging Candy industry Chemical industry Sliding and drive components in the food and pharmaceutical industry Railway Vehicle manufacturing Building and construction General mechanical engineering Borotron UH & HM Applications Shielding in nuclear installations
Better than steel liners	unlike metals, it will not rust due to its high resistance to acids and alkalis outwear abrasion-resistant steel by 3 to 1 and UHMWPE by 5 to 1
Key Features and Benefits	These wear strips offer low friction wear surface for chains and ensure smooth & noiseless conveying. UHMW-PE material to ensure minimum friction and maximum wear resistance.

Size of UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

Length mm	Width	Thickness
1000	1000	5-50
2000	1000	5-50
3050	1220	5-50
3030	1550	5-50
4520	2000	5-50
4730	1230	5-50
5040	1330	5-50
6050	1820	5-50
Any size will be made as request.Any size is availible.

Properties of UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient		≤0.16
Kinetic Friction Coefficient		≤0.10
Water Absorption		NIL
Elongation at break at 23°C	%	≥300
Melt Temperature	°C	130-140
Temperature Resistance	°C	-269 to +85

Advantage of UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

1. Doesn't wear easily

Having an incredibly high molecular weight,UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers proves its true worth not only in regards to sliding with metal faces, but also sand, powder and other fields where normal wear-resistant materials struggle.

2. Excellent sliding ability

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers has an extremely low friction coefficient. It is comparable to PTFE, which also slides well.

3. Doesn't crack easily

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers has a level of shock resistance simply not found in other materials. Does not break easily unless affected chemically.

4. Non-adhesive

Highly non-adhesive. With a non-adhesiveness second only to PTFE, UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers is optimal as a material for the inner liners of containers such as hoppers, silos and chutes.

5. Non-toxic and safe

A physically non-toxic material. Great for use with food products, UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers can also be used in the medical field.

6. Difficult to penetrate

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers Features excellent chemical resistance.

7. Doesn't absorb water.

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers has an absorption rate of virtually zero, therefore its strength does not deteriorate due to swelling caused by water absorption.

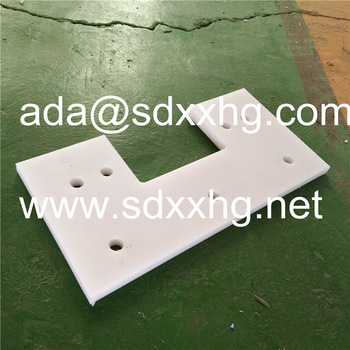

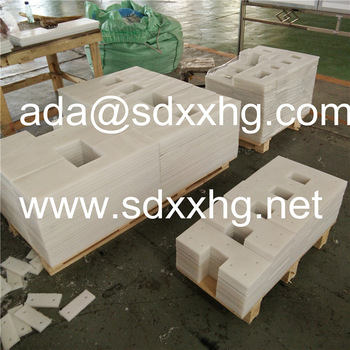

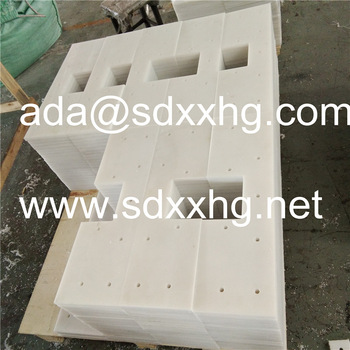

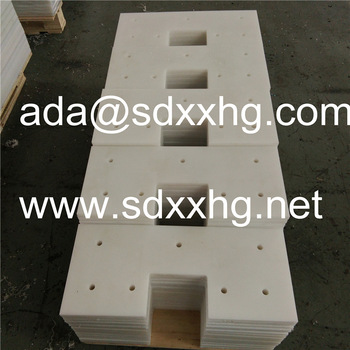

Detailed Images

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

UHMWPE Drag conveyor - U type UHMWPE flight UHMWPE chain spacers

UHMWPE wear strips

HDPE wear strips

Packing & Delivery

Shipping

pallets ,wooden case or as request

about 15-30 days

Air transportation

EXPRESS,DHL..UPS..

Our Company

Shandong Ningjin Xinxing Chemical Co.,Ltd

Address:Liaohe Street,Dezhou City,Shandong Province,China.

Zip code:253400

Contact Phone Number:86-13181374731 86-18653409198

Shandong Ningjin Xinxing Chemical Co.,Ltd. is one of the largest Engineering Plastic products manufacture in China.
We have a wide variety of products, mainly including all kinds of UHMW-PE Fender Pad ,UHMW-PE Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products.
